Seasonic SS-460H1U H1U 1U POWER SUPPLY

$280.45 $351.95 -21% OFF

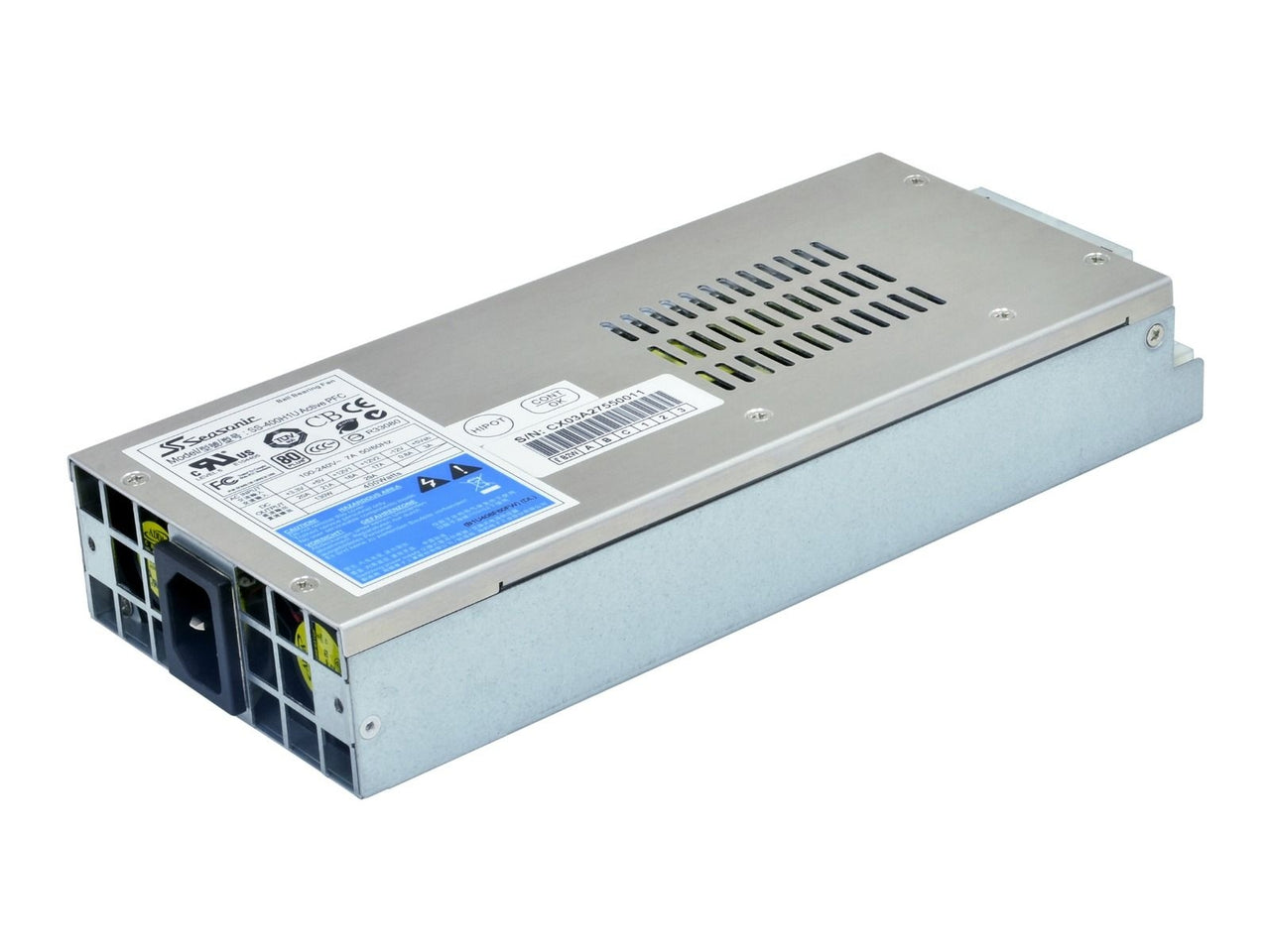

Thumbnail for Seasonic SS-460H1U H1U 1U POWER SUPPLY
Seasonic SS-460H1U H1U 1U POWER SUPPLY

Seasonic SS-460H1U H1U 1U POWER SUPPLY

$280.45 $351.95 -21% OFF

SKU: V28-PSUSEA460H1U80P

LIMITED TIME OFFER 00
days 00
hours 00
minutes 00
seconds

The price of this item will revert back to $351.95 at the end of this countdown.

Products will be delivered between 1 and 5.
NONE LEFT IN STOCK
0 watching this item.
0 have this item in their cart.
Product description

This Seasonic industrial power supply is 80 PLUS® efficiency rated and it features a high reliability ball bearing fan. Fully modular cables and easy-swap connectors add a new dimension to its versatility, while the Seasonic Smart and Silent Fan Control (S2FC) system make it a silent performer. These units comply with the latest PFC harmonics (IEC1000-3-2 and EN61000-3-2 standards) and are protected against short circuit, over voltage and over power. On the 3.3 V rail there is no minimum load requirement for this unit to work properly.



Specifications
Input frequency 50 / 60 Hz
Efficiency (220 V AC - 240 V AC, full load) 83 % (typical)
Efficiency(100 V AC - 120 V AC, full load) 80 % (typical)
Dielectric withstand, input to frame/ground 1800 VAC, 1 sec
Dielectric withstand, input to output 1800 VAC, 1 sec
Line regulation ± 1 % (typical)
Load regulation ± 5 % (typical)
Cross regulation ± 5 % (typical)
MTBF, full load @ 25 °C ambient (excl. DC fan) > 100,000 hours
Active Power Factor Correction 99 % (typical)

V28-PSUSEA460H1U80P
DC Outputs
+3.3 V +5 V +12 Combined -12 V +5 Vsb Total continuous power Input Type
20 A 21 A 34 A 0.8 A 3 A 460 W 100–240 VAC
130 W (max.) 408 W 9.6 W 15 W
