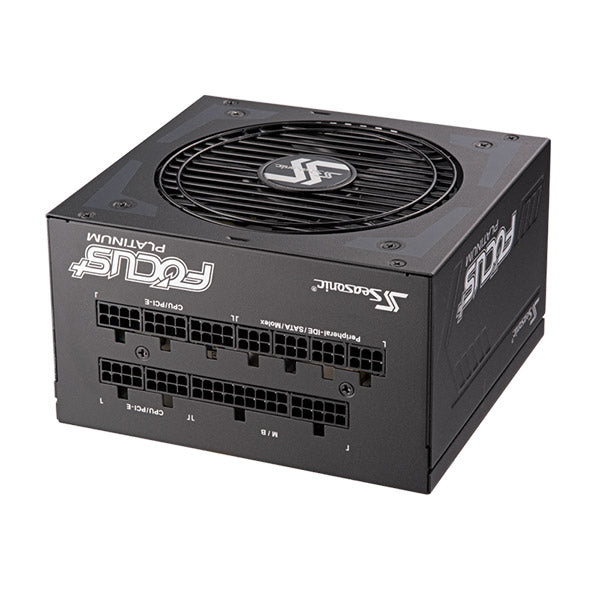

SeaSonic 650W FOCUS PLUS Platinum PSU (SSR-650PX)

OVERVIEW

The technologies applied and the components and materials used in the manufacturing of the FOCUS+ Platinum 750 watt power supply do not compromise on Seasonic’s legendary high standards. This product received 80 PLUS® Platinum certification, where efficiency reaches 92 % at 50 % system load. Superior dynamic response, great system stability, maximized 12 V DC rail output and a state-of-the-art fan control system are just some of the features that will awe enthusiasts who become familiar with this power supply. added: it is as good as irresistible.

SPECIFICATIONS

• 80PLUS®: Platinum
• Form Factor: Intel ATX 12 V
• Dimensions: 150 mm (W) x 140 mm (L) x 86 mm (H)
• Fan Information
• Fan Size: 120 mm
• Fan Control: Hybrid Silent fan Control
• Fan Bearing: Fluid Dynamic Bearing
• Life Expectancy: 70,000 hours at 40 °C, 15 % - 65 % RH
• Cable Information
• Modularity: Fully Modular
• Cable type: Flat black cables
• Electrical Features
• Operating Temperature: 0 - 50 °C
• MTBF @ 25 °C, excl. fan: 100,000 hours
• AC Input: Full Range
• Protection: OPP, OVP, UVP, OCP, OTP, SCP
• Safety and Environmental
• Safety and EMC: cULus, TUV, CB, CCC, BSMI, EAC, RCM
• Environmental Compliance: Energy Star, RoHS, WEEE, ErP Lot 6, REACH
